A new pipeline inspection tool being used by contractors working for the Vallecitos Water District to determine pipeline integrity could become a standard tool saving time and money.
After nearly completing construction in 2008, developers walked away from the 500-acre High Point subdivision in the City of Escondido. Water facilities installed for the subdivision were left unused for ten years.
Two developers CalWest and TrueLife Communities recently decided to complete the project. They approached Vallecitos to determine what is needed to complete water service.
The mains for the project, made of ductile iron pipe, had not been used for ten years. Vallecitos needed to determine the condition of the pipes. Infrastructure Engineering Corporation and subcontractor PICA Corporation are now testing and assessing the integrity of the water main including the pipeline appurtenance (blow-offs, air vacs, and fire hydrants) connections to the main pipeline.
Early damage detection prevents pipeline failures

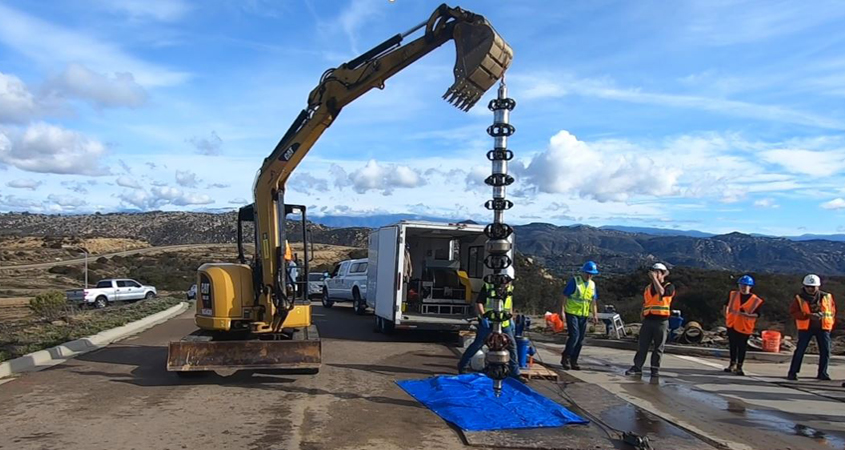

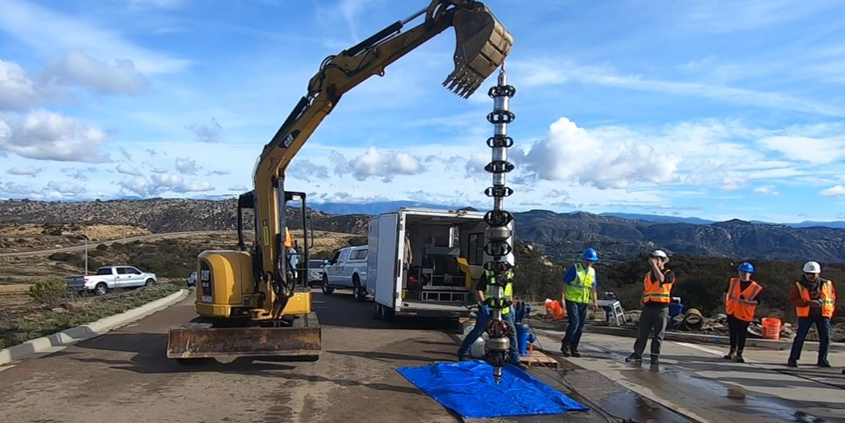

Several processes are included in the High Point Pipeline Assessment project. Crews insert a tool developed by PICA Corporation called a “SeeSnake” into the pipeline, and data indicates the condition of the pipes. The SeeSnake uses an electromagnetic method on iron pipes, which can “see” past cement mortar, epoxy, or polyethylene lining to detect and size any corrosion damage to the iron structure of the pipe itself.
The SeeSnake tool is pulled through the pipe at 17 feet per minute, delivering data as the inspection is being performed in real-time. The technology helps expedite information, saving time and costs by accelerating the process without sacrificing attention to detail. Vallecitos is then able to assess the pipeline’s wall thickness, potential iron loss, and any other anomalies to determine the condition of the existing pipeline.
See video demonstrating the SeeSnake pipeline assessment.
“Good decisions start with good information,” said Kris Embry, PICA regional manager. “Our ultimate goal in testing this new system is to quickly and efficiently secure accurate condition assessment information, allowing the Vallecitos Water District to address any weak links and prevent potential pipeline failures long before they happen.”
When the inspection is completed, the repair process begins.
Two water pipelines are being inspected for the condition analysis, one running along Woodland Heights Glen starting at Briar Patch Glen, and one running along Elderwood Glen, totaling approximately 3,067 feet. The larger 2,300 feet section of pipe is near the District’s existing Palos Vista.
Preventive measures save water and costs
Over time, pipelines are exposed to corrosion from aggressive soils, electrical currents, damage to coatings or linings, physical force, or other factors. The result could be a pipeline break which could case other infrastructure damage, interruption to water service, a loss of water, or monetary losses.
When an inspection finds corrosion, the affected section of iron pipeline is isolated, removed, and replaced by PVC pipe. Because iron pipelines can be susceptible to corrosion from multiple causes, they are no longer installed in the Vallecitos Water District.
The inspection found two badly corroded areas of pipeline and excavations verified the accuracy of the data. The Vallecitos Water District continues testing the new process and the accuracy of the data to determine whether to adopt the new technology for future working pipeline assessments.
